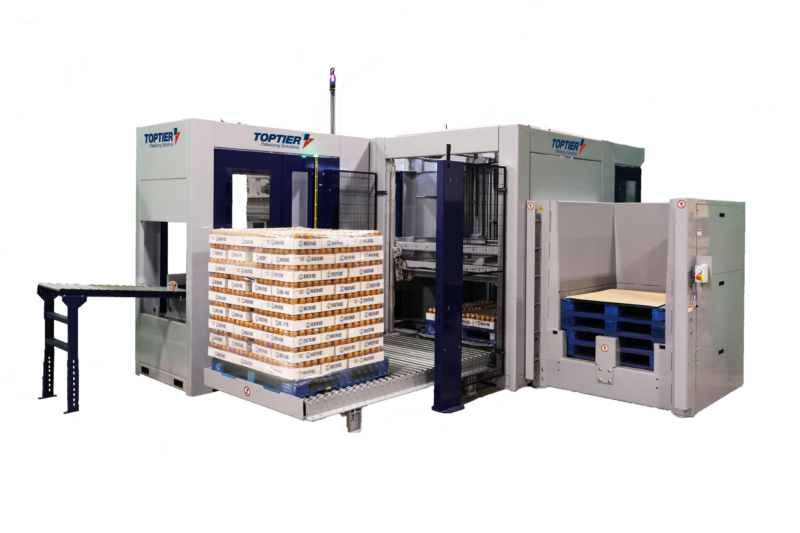

TopTier Low Infeed Palletizer
Low level infeed row-forming palletizers work with existing floor-level conveyors
TECHNOLOGY
Palletizer model groups share common functional modules and frame systems to provide comprehensive palletizer solutions. Shared modules maximize layout flexibility while reducing cost through increased manufacturing and machine controls efficiencies. Modular engineering means quality control and complete flexibility in the configuration of machine components. No customization is required with our low level palletizers. The orientation of induction and load exit meet your exact requirements.
CONTROLS
TopTier palletizers combine the most recent advances in machine control technology with an intuitive interface HMI and EasyStack© pattern programming software. Low infeed conventional palletizer with the EasyStack interface is easy to use, regardless of user level of experience.
SAFETY
Safety has been integrated into every aspect of palletizer design to meet all industry standards utilizing a category 3 safety cage frame design with light curtain protection of load exit, redundant hoist fall protection, and controlled door entrance protocols. Operator safety when using our low infeed case palletizers is our highest priority.
| Performance | |
| Rates | 1-3 layers per minute |
| Products | Case, tray, trayless, open top, lidded, overwrapped or unwrapped, bundles, nested, display pack |
| Infeed | Low |
| Load Capacity | |
| Infeed Height | 23" to 60" |
| Minimum Case Dimension | 4.5" |
| Maximum Case Dimension | 29" |
| Maximum Case Height | 18" |
| Minimum Layer Dimension | 38" |
| Maximum Layer Dimension | 50" |
| Standard Layer Weight | 300lbs |
| Standard Load Height | 60" or 72" |
| Machine Structure | |
| Minimum Footprint | 162" x 115" |
| Typical Footprint | 233" x 155" |
| Film Delivery System | |
| FDS | Concurrent stretch wrapping available (Option) |
| Operator Interface | |
| PLC | The controls architecture is based on an Allen Bradley PLC running universal PLC and HMI code modules. The PLC and HMI code is compiled for the specific palletizer configuration from the universal code. The use of modified and custom code does not apply. |
| HMI | Operations interface is provided by a color touchscreen panel running AB Factory Talk HMI. HMI screens provide intuitive interface to the palletizer for all needed operations. HMI screens are designed for simple yet comprehensive access to palletizer functionality including automatic and manual operations, pattern selection and programming, back-up, recovery operations, safety status, and maintenance logs. |
| Utility Requirements | |
| Electrical | 480VAC 3-phase with solidly grounded Wye. Other voltages available |
| Air | Varies on rates and accessories. Generally less than 5 SCFM @ 90PSI ¼” air drop to at the panel (Filter regulator and lockouts provided) |
| Safety Features | |
| Category 3 Pld Standard | Safety cage frame design with light curtain protection of load exit, redundant hoist fall protection, and controlled door entrance protocols. |
| All Electric |
| Concurrent Stretch Wrapping |
| Double Stack Loads |
| Freezer |
| Labels-Out |
| Layer Weight to 1000lbs |
| Load Handling |
| Load Labeling |
| Multiple Palletizer Shuttle Car |
| Pallet Handling |
| PerfectPattern System |
| Sheets & Liners |
| Tall Loads to 110" |
| Video Monitoring |
